Constmach 60 m³/h Compact Concrete Batching Plant With Band leasing

You can Call us 24/7 for compact concrete batching plant for sale.

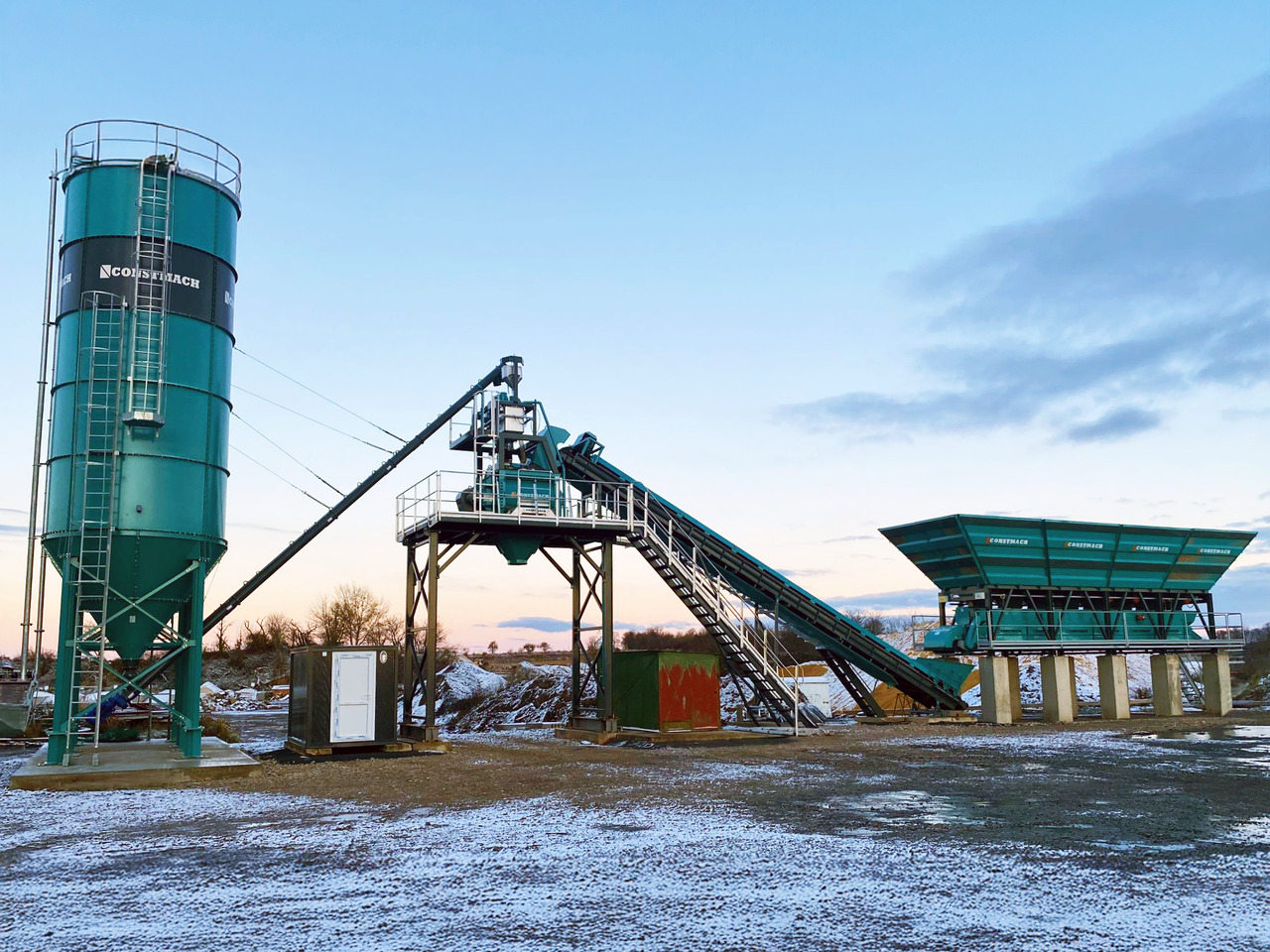

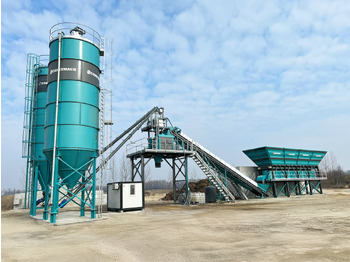

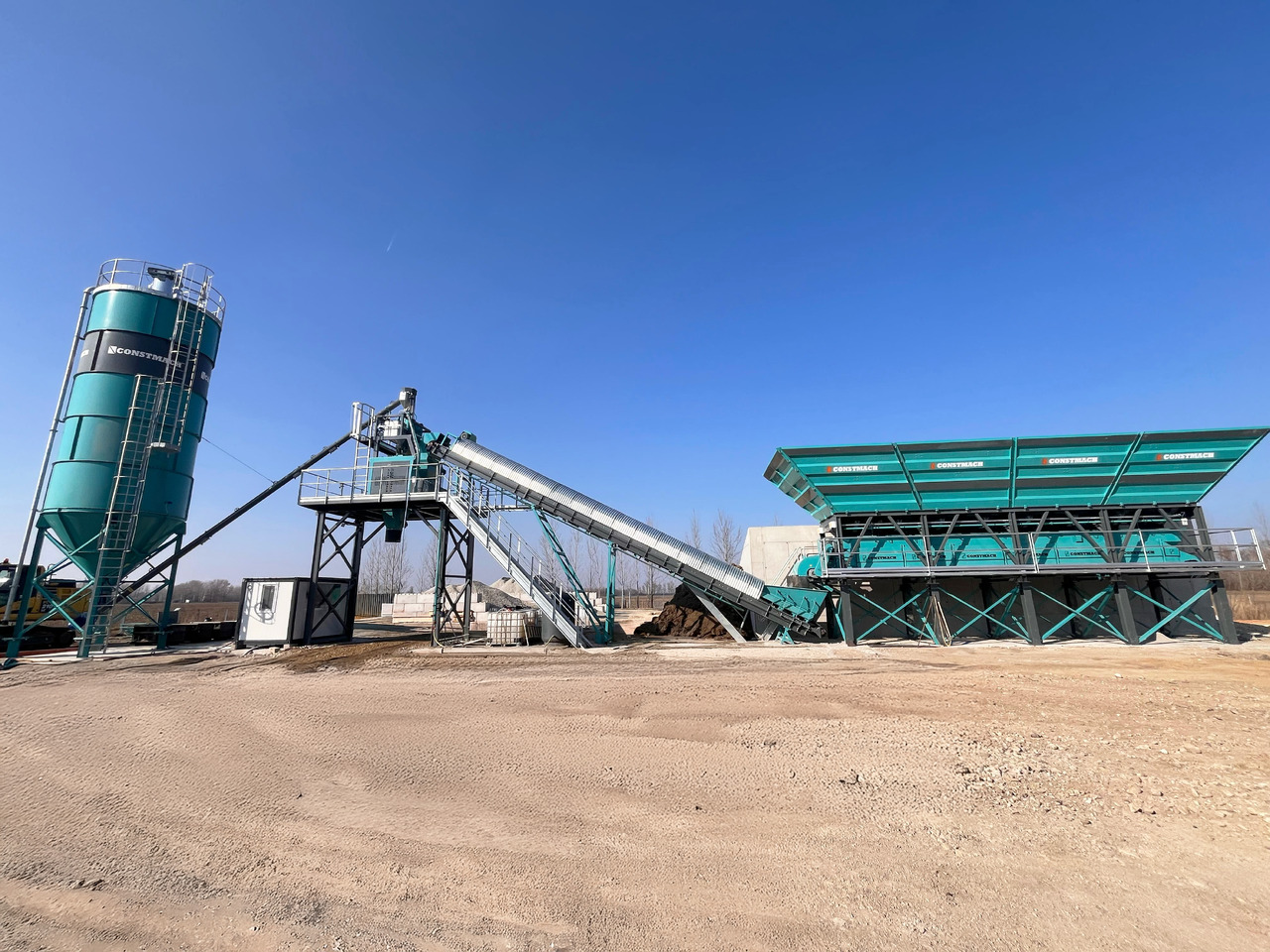

Compact 60 with CONSTMACH branded Conveyor, which will enable you to carry out your works more efficiently and quickly, is a solution that perfectly meets the needs of the modern construction sector. This power plant, which has a production capacity of 60 m3 per hour, adds value to your projects with the details located at every corner.

this compact unit, measuring 13 x 2.3 x 2.3 meters, stands out with its features such as mobile crusher and mobile crusher. it offers a powerful performance with a weight of 28 tons and an engine power of 105 kW. It provides an uninterrupted production opportunity with the required electricity generator of 125 kVA. Various mixer options (Pan, Single Shaft, Double Shaft, Planetary) allow you to offer customized solutions for your projects.

The Compact Concrete Batching Plant with conveyor can be conveniently positioned in a working area of 300 m2. The power plant, which has separate weighing compartments for aggregates, water, cement and additives, manages the operations with great precision thanks to the automatic control system. the cement silo capacity, which ranges from 50 tons to 500 tons, provides you with flexibility even in large projects.

This power plant, every part of which has been carefully designed, is ideal for saving time and cost in your projects. While it can be easily installed even in narrow areas with its compact structure, it can be quickly put into operation in different projects thanks to its portable features. The Compact 60 with CONSTMACH Conveyor will take your business to a new level with its reliability and superior technical characteristics.

Compact Concrete Batching Plant With Conveyor Compact-60 Technical Specifications

general features

Production capacity 60 m3/h

Transport Position Size 13(L) x 2.3(W) x 2.3(H) meters (in case of square type bunker)

Weight 28 tons

Total Motor Power 105 kW

Required Electric Generator 125 kVA

Mixer Options Pan - Single Shaft – Double Shaft - Planetary

The required area for operation is 300 m2

technical specifications

Aggregate Stock Hopper 4 x 15 m3

Aggregate Weighing Hopper 1.5 m3

Aggregate Weighing Conveyor 800 x 11.100 mm

Aggregate Transfer Conveyor 800 x 22.000 mm

Mixer Wet Concrete Volume 1 m3

Cement Weighing Hopper 600 kg

Water Weighing Hopper 300 lt

Additive Weighing Hopper 20 lt

Air Compressor 300 lt, 5.54 kW

Cement Silo capacity option from 50 tons to 500 tons

Control Type FULLY AUTOMATIC
